solarpanel.io

solar panel

JA Solar JAM72D30-550/MB

The JA Solar JAM72D30-550/MB is a bifacial monocrystalline PV module with a power output of approximately 550W, featuring double-glass construction, a 144-cell configuration, and a maximum system voltage of 1500V. It offers high efficiency, low temperature coefficient, and a 30-year linear power warranty, suitable for both residential and commercial applications.

Images

Maxeon solar install in San Diego
img_tag

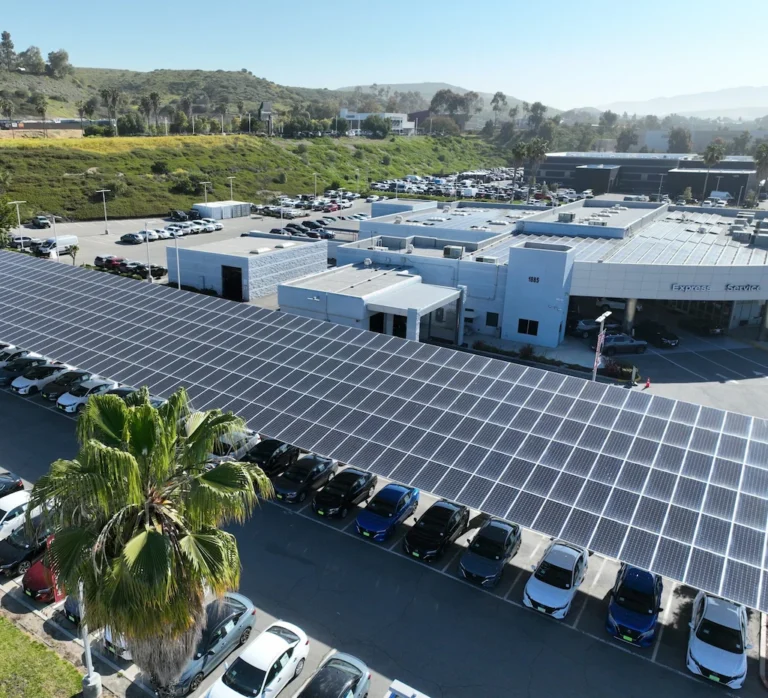

Mossy Nissan solar installation by SolarTech
img_tag
JA Solar JAM72D30-550/MB
json_ld
SolarTech
img_tag
SolarTech
img_tag

Pros and cons

Pros

Strengths called out by generated product content.

  • High efficiency with up to 21.3% efficiency rating
  • Bifacial design captures sunlight from both sides to maximize production
  • Proven reliability with 12-year product warranty and 30-year performance warranty
  • Durable construction with PID resistance and special glass lamination
  • Large power output of up to 550W per panel
  • Suitable for large-scale installations due to high power density
  • Relatively straightforward installation process
  • Good value for the power output, offering more panels for the same cost compared to some competitors
  • Manufactured by a well-established Tier 1 company with a good reputation

Cons

Tradeoffs and constraints to review before choosing.

  • Efficiency rating is slightly lower (20.3% - 21.3%) compared to some top-tier panels
  • Size and weight may be challenging for residential roof installations
  • Some concerns about the panels being Chinese-made, though they are Tier 1
  • Potential issues with shipping damage noted in some reviews
  • Panels are not considered the absolute top end in performance or technology
  • Limited information on long-term field performance in diverse environments

Notes

Context that does not fit neatly as a pro or con.

  • Panels are bifacial, which can recapture sunlight and increase energy yield
  • Panels are routed through Vietnam to avoid tariffs, which is common for Chinese panels
  • Some users mention that inverter choice impacts system performance more than panel brand
  • Panels are suitable for both residential and commercial applications
  • Market perception varies, but they are generally regarded as solid Tier 1 panels

Electrical Specifications

Power Output
550 W12
Efficiency
21.2 %1
Cell Type
144 half-cell PERC monocrystalline1
Max System Voltage
1,500 V1

Physical Dimensions

Width
1,134 mm1
Height
2,285 mm1
Weight
27.5 kg1

Material & Construction

Frame Material
35mm anodized aluminum (silver)1

Product Information

Release Year
20251
