solar panel
Light Diamond
The Light Diamond module by Jinko Solar is a photovoltaic product with a Class II protection rating, designed for safe solar energy conversion under standard conditions, with installation guidelines emphasizing safety, proper mounting, and electrical connections supported by manufacturer manuals.
Images
Pros and cons
Pros
Strengths called out by generated product content.

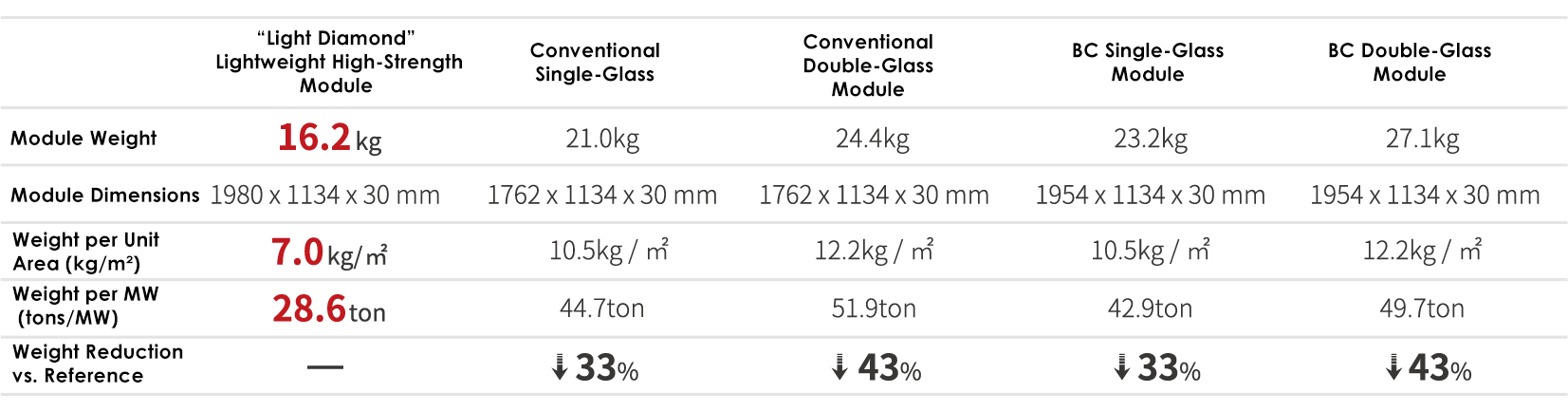

- Light Diamond modules are about 40% lighter than conventional panels, weighing around 7 kg per square meter.
- They can be installed on roofs that previously required reinforcement or were unsuitable for traditional panels without structural modifications.
- Deliver a high efficiency of 24.94% and a maximum power output of 560W.
- Break the common trade-off between weight reduction and power generation efficiency.
- Suitable for special structures like space frame roofs, arched roofs, and greenhouses.
- Manufactured by a reputable Tier 1 company with good market reputation.
Cons
Tradeoffs and constraints to review before choosing.
- No specific user-reported cons found in the discussion snippets.
Notes
Context that does not fit neatly as a pro or con.
- Some users refer to Jinko as “junko” or compare it with other brands like Canadian Solar, Aiko, and Hyundai.
- Comments suggest that Jinko panels are generally considered solid and reliable, but specific performance details depend on individual installation conditions.
Electrical Specifications
Physical Dimensions
- Width
- 1,134 mm
- Height
- 30 mm
- Weight
- 7 kg
- Area
- 7
Design
- Features
- BIFACIAL, High efficiency, High-strength, Lightweight, mono-facial, TOPCon, TOPCon technology
- Lead Free
- Yes
- Module Type
- TOPCon, bifacial, monofacial1
Material & Construction
- Frame Material
- glass1
