Meyer Burger 390W HJT 120 Half-Cell Solar Panel

The Meyer Burger 390W HJT 120 Half-Cell Solar Panel features monocrystalline silicon with a power output of 390W (STC), an efficiency of 21.2%, and a maximum system voltage of 1000V. It has a black anodized aluminum frame, a white or black backsheet, and is IEC 61215:2016 and IEC 61730:2016 certified. The panel utilizes heterojunction (HJT) technology and is available in black-on-black or black bifacial variants supporting high voltage and bifacial applications (sources: documents 1, 2, 3, 4, 5, 6).

Images

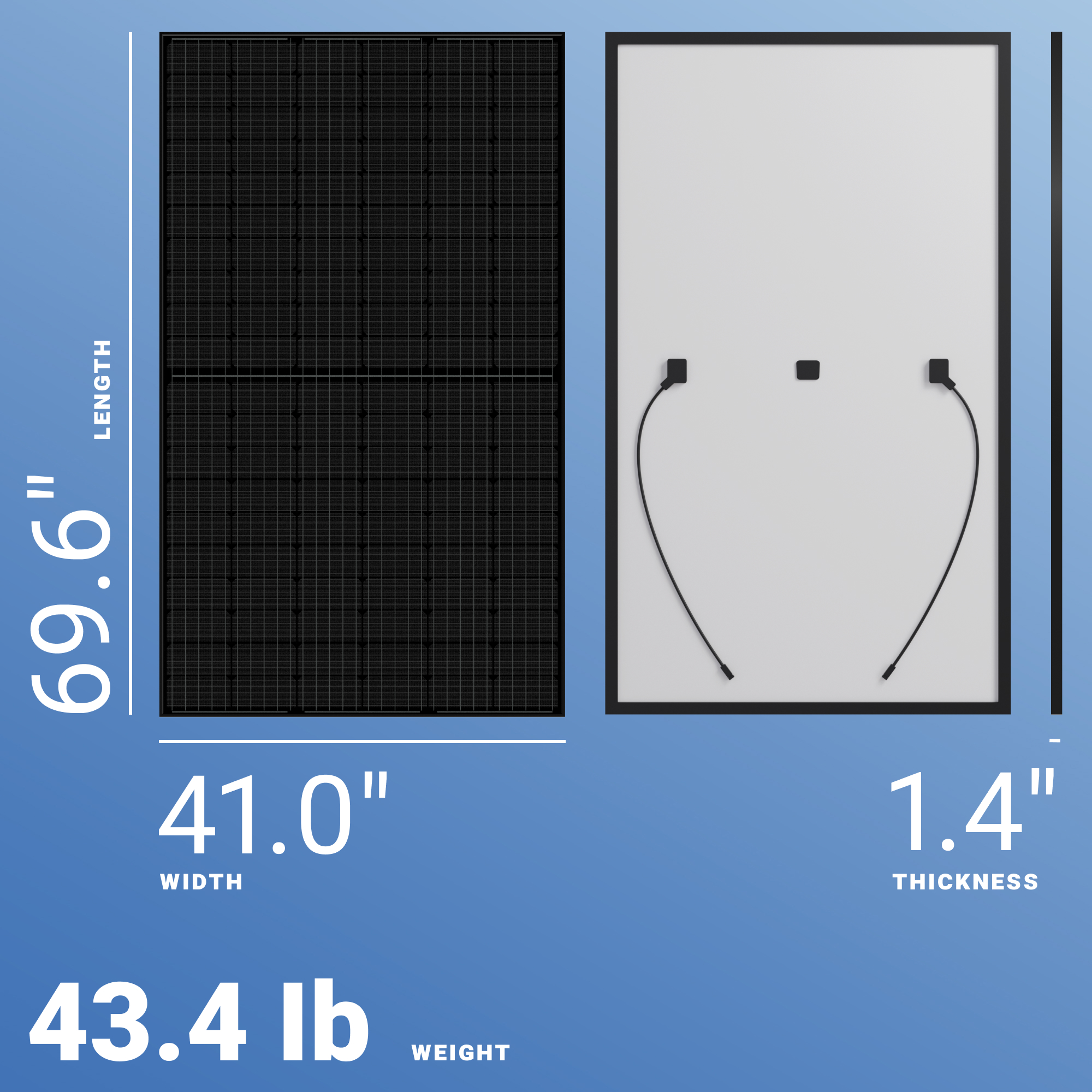

Meyer Burger 390W HJT 120 Half-Cell Solar Panel — og_image

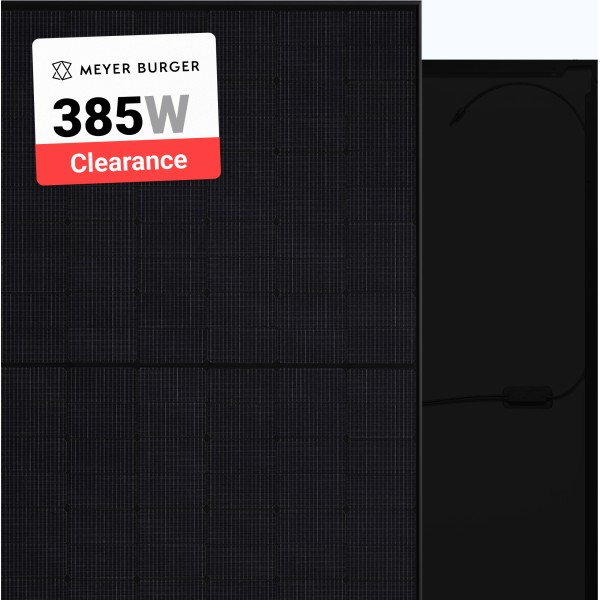

Meyer Burger 385W Solar Panel 120 Cell HJT All-Black MB_B120AyB_385 Clearance — img_tag

Meyer Burger 390W HJT 120 Half-Cell Solar Panel — json_ld

Pros and cons

Pros

Strengths called out by generated product content.

High efficiency rate significantly higher than conventional panels
Demonstrates from 375 to 395W power output
Low annual degradation rate of 0.25%
Provides at least 92% of rated power output after 25 years
Utilizes heterojunction technology (HJT) for enhanced performance
Black design options available for aesthetic preferences
Reduces shading and internal resistance with SmartWire Connection Technology

Cons

Tradeoffs and constraints to review before choosing.

Less efficient compared to some other premium panels like Panasonic
Concerns about the company's financial stability and potential bankruptcy
Limited publicly available information about the panels

Notes

Context that does not fit neatly as a pro or con.

Some users report good quality panels at reasonable prices
Installation process described as professional and hassle-free

Electrical Specifications

Power Output: 390 W1
Efficiency: 21.2 %1
Cell Type: HJT1
Temperature Coefficient: -0.26 %/°C1
Max Current: 20 A1
Max System Voltage: 1,000 V1

Physical Dimensions

Width: 1,041 mm1
Height: 35 mm1
Weight: 19.2 kg1

Material & Construction

Frame Material: Anodized Aluminum1
Frame Color: Black1

Sources

Source 1a1solarstore.coma1solarstore.com11 facts
Power Output Efficiency Cell Type Temperature Coefficient Max Current Max System Voltage Width Height Weight Frame Material Frame Color
