solar panel

REC Alpha Pure-RX

REC Alpha Pure-RX solar panels utilize heterojunction (HJT) technology, offering efficiencies up to 22.6% and power outputs between 450-470 Wp. They feature a compact size of 22.4 ft² and are designed for high performance and durability, with a minimum of 92% of rated power maintained after 25 years (recgroup.com).

Images

REC Alpha Pure-RX
img_tag
REC Alpha Pure-RX
img_tag

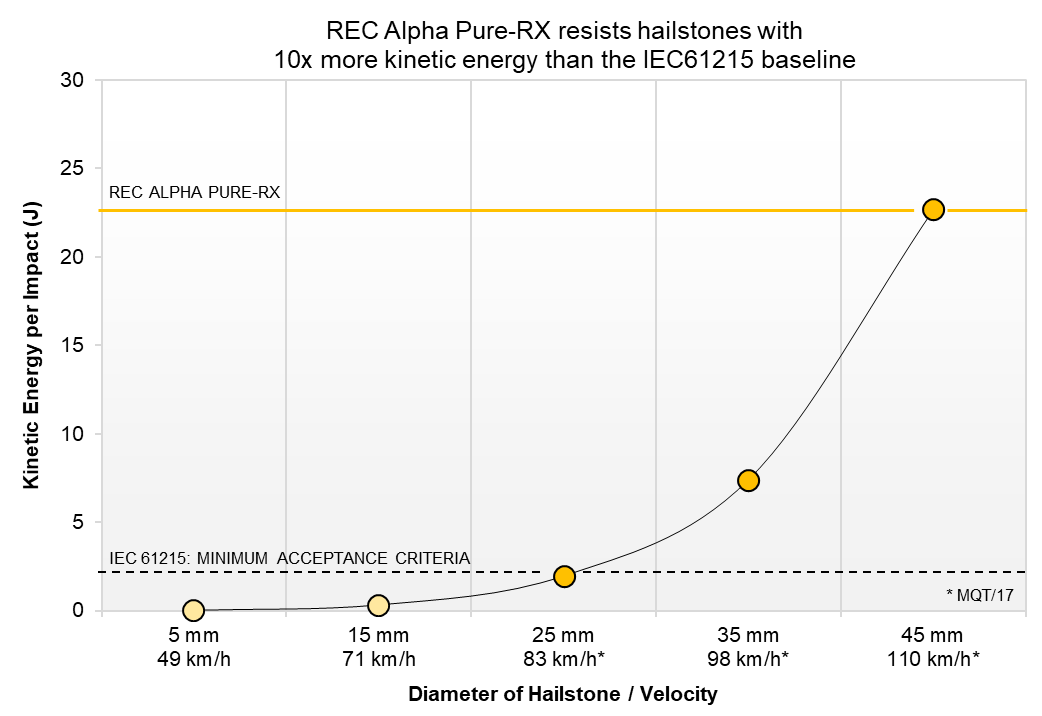

Graph showing kinetic energy per impact of 45 mm hailstones
img_tag
REC Alpha Pure-RX
img_tag
REC Alpha Pure-RX
img_tag

Pros and cons

Pros

Strengths called out by generated product content.

  • High power density of 21 W/ft2 and up to 470 W in a compact form factor
  • Elegant full-black design with minimal visible cell connections
  • Based on large G12 HJT cells with gapless half-cut design for improved aesthetics and increased power
  • No initial power loss (no LID) and high efficiency (22.6%)
  • Higher light transmission due to special anti-reflective glass
  • Strong durability with hail resistance up to 45 mm and high mechanical load ratings (+7000 Pa / -4000 Pa, +10000 Pa / -6000 Pa with clamping)
  • Excellent long-term performance with 92% capacity after 25 years and low degradation rate of 0.25% annually
  • Better performance in hot climates due to a temperature coefficient of -0.24%/°C
  • Uniform appearance enhances aesthetics and blends well with roofing materials

Cons

Tradeoffs and constraints to review before choosing.

  • Price sensitivity; panels may be more expensive compared to other brands
  • Compatibility with specific inverters required due to high voltage output
  • Availability of 470W modules in the US is delayed until 2025
  • Some users perceive the industry ratings as potentially inflated or misleading

Notes

Context that does not fit neatly as a pro or con.

  • The panel looks great for bifacial applications, but effectiveness depends on price and installation context
  • The panels are physically smaller than some alternatives, which may increase the number of panels needed for certain systems
  • The panels are based on HJT technology, which is preferred over TOPCon for potential efficiency gains

Electrical Specifications

Power Output
470 W
Efficiency
22.6 %
Cell Type
heterojunction, Heterojunction (HJT), HJT
Temperature Coefficient
-0.24 %/°C
Max Current
91
Min Power Output
430 W
Max System Voltage
1,0001
Power
470 W

Physical Dimensions

Width
2,080 mm
Height
1,930 mm
Weight
22.5 kg
Area
21 ft²

Design

Features
anti-reflective glass, bifacial, compatible with MLPE, full black appearance, gapless cells, hail resistant, high power density, hot weather performance, long-term durability, 000 Pa, Compact Design, Durability, Durable, Heterojunction (HJT) Technology, Heterojunction Technology, High efficiency, High Power, Lead Free, Load capacity up to 10, Premium Warranty, RoHS compliant
Lead Free
Yes
Module Type
heterojunction, heterojunction (HJT), Heterojunction (HJT) technology
